Description

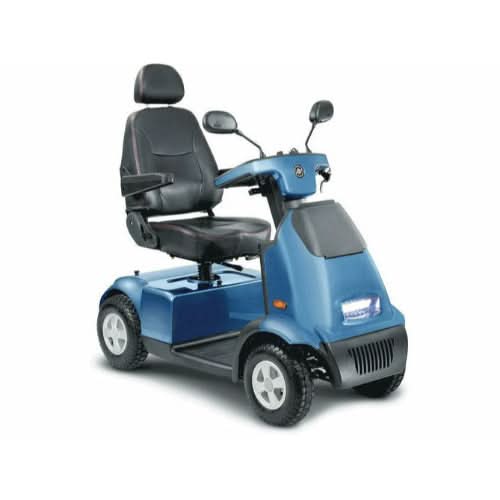

The Afikim Afiscooter C4 Extended Range is a high-quality 4-wheel electric mobility scooter, perfect for both indoor and outdoor use. Renowned for its exceptional safety and comfort, it is equipped with advanced shock absorbers and a plush, orthopedic seat that rotates for easy access. A powerful LED headlight ensures improved visibility, while the ergonomic tiller, user-friendly controls, and clear display enhance usability. With an impressive travel range of up to 45 km and a focus on comfort, the Afiscooter C4 provides a premium riding experience, making it an excellent choice for those seeking both reliability and luxury.
FEATURES
- Luxurious Seating: Orthopedic rotatable seat for superior comfort and easy access.
- Powerful Lighting: Wide field of view LED headlight for improved visibility.
- Ergonomic Controls: User-friendly tiller with left and right-hand controls and an easy-to-read display.
- Advanced Suspension: Well-tuned shock absorbers for a smooth and comfortable ride.
- Versatile Use: Suitable for both indoor and outdoor environments.
- Options/Accessories: Canopy, rear lock box, wide seats 20 Inches, crutch holder
Specifications
- Brand: Afikim
- Color: Blue
- Overall Length: 54 Inches
- Overall Standard Wheels Width: 26 Inches
- Folded Height: 31 Inches
- Overall Height: 50 Inches
- Ground Clearance: 4 Inches
- Travel Range: 25 - 28 Miles
- Maximum Speed: 6.2 - 9.3 Mph
- Max Climbing Angle: 9 Degrees
- Turning Radius: 67 Inches
- Seating Width: 18 Inches
- Tire Type: Pneumatic (1.7 bar)
- Tire Size: Front (4.10/3.50-6) Inches, Rear (4.10/3.50-6)Inches
- Battery Type x2: 12V 105Ah, Maxium
- Rear Wheel Drive Power Unit: 24V DC motor
- Controller Type: SD 120A
- Charger Capcity: 8 Amp
- Overall Weight: 209 Lbs
- Weight Capacity Including Driver: 330 Lbs
Warranty
Provided that the scooter is unpacked within 1 month from date of Delivery, Afikim Electric Vehicles hereby warrants, guarantees and undertakes responsibility to replace free of charge defected part items material, according to the policy hereby mentioned.
Two-Year Full Warranty – Included Labor
For two (2) years from the date of delivery to the original purchaser, Afikim Electric Vehicles will replace free of charge, any of the following parts found upon examination by an authorized representative of Afikim Electric Vehicles to be defective in material and/or workmanship:
- Main frame
- Seat Post
- Tiller Frame
- Bearings, Bushings
- Harnesses
- Power units
- Controllers
- Chargers
- Electronic items – Front board, Display Board, Front light, Rear lights, Blinkers, USB charger etc.
- Off The Shelf items – Switches, key switch, brakes, fuses, Gas piston, Shock absorbers, Potentiometer, Speed Sensors, Fork etc.
Warranty Exclusions
The warranty shall not apply to serial numbered products if the serial number has been removed or defaced. Products subjected to negligence, accident, improper operation, maintenance or storage. Products modified without Afikim Electric Vehicles express written consent including, but not limited to, modification using unauthorized parts or attachments. Products damaged by reason of repairs made to any component without the specific consent of Afikim Electric Vehicles.
This warranty does not extend to those items which may require replacement due to normal wear and tear:
- ABS Plastic Shrouds
- Motor brushes
- Brake pads
- Tires and tubes
- Bulbs
- Batteries
Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period, or worn out through heavy use is not covered. - Circumstances beyond the control of Manufacturer
Scope of Warranty
The term 'replace free of charge' refers to the following Scope that will be performed and borne in full by Afikim Electric Vehicles: Shipping, and other charges incurred for delivery of the part to the customer premises. Note: Afikim Electric Vehicles reserves the right to request the proof of purchase upon making a warranty claim.
