Description

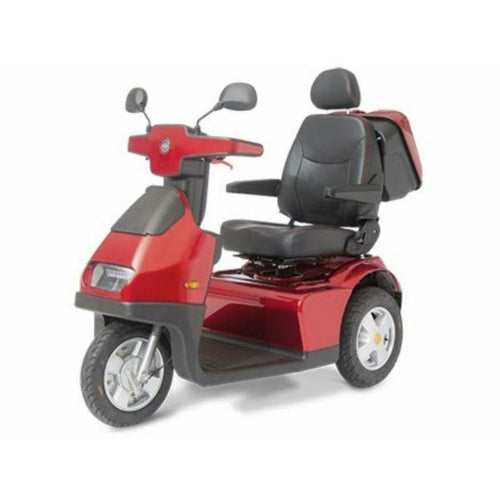

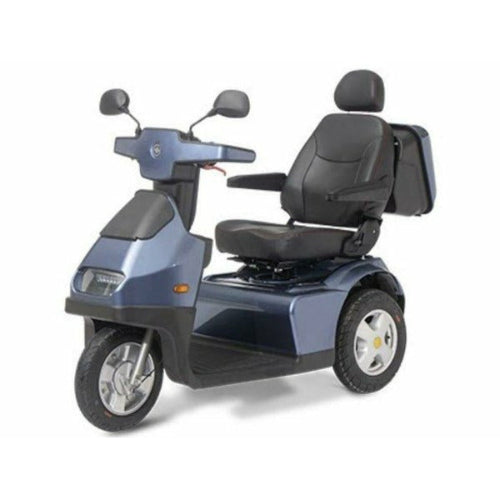

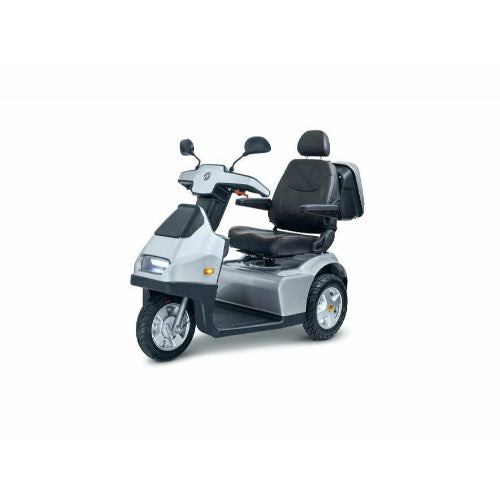

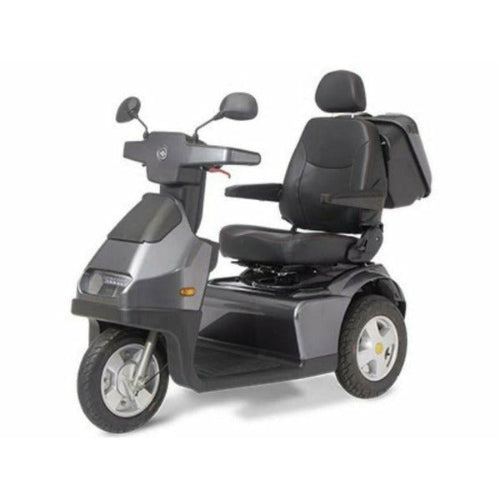

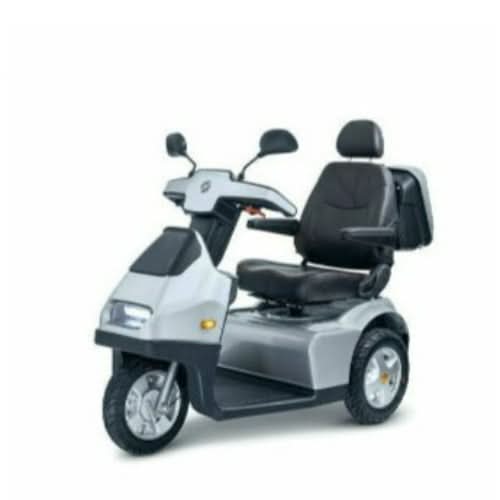

TheAfikim Afiscooter S3 All Terrain Heavy Duty Mobility Scooter is an exceptional mobility solution designed for those seeking both performance and comfort. This scooter is ideal for outdoor use, boasting a robust design with a weight capacity of up to 450 lbs. It features an advanced electronic system with a programmable drive controller and LCD display, ensuring a smooth and efficient ride. The ergonomic tiller is fully adjustable to meet the driver’s exact requirements, while the luxurious orthopedic seat offers maximum comfort for all-day use. With full round suspension and advanced shock absorbers, the Afiscooter S3 provides unmatched stability on any terrain. Additional features include heavy-duty batteries, sealed and lockable storage compartments, powerful LED lights, and a stunning metallic silver finish. The optional hard top canopy adds extra protection, making this one of the most advanced and comfortable mobility scooters available.
FEATURES
- Advanced electronic system: Programmable drive controller
- Adjustable ergonomic tiller: Meets the driver's exact requirements
- Full round suspension: Shock absorbers for unparalleled stability
- Fully adjustable orthopedic seat: It comes with an Optimal comfort
- Secure storage: Sealed and lockable storage compartments
Specifications
- Brand: Afikim
- Overall Length: 61 Inches
- Seat: 20 Inches
- Overall Rear wide Wheels Width: 27 Inches
- Overall Golf Tires Width: 35 Inches
- Overall Height Without Canopy: 49 Inches
- Overall Height with Canopy: 65 Inches
- Ground Clearance: 5 Inches
- Weight: 337 Lbs (with Batteries)
- Weight: 234 Lbs (Without Batteries)
- Weight of Canopy: 33 Lbs
- Weight of Wide Wheels: 26 Lbs
- Weight Capacity Including Driver: 450 Lbs
- Travel Range: 36-38 Miles
- Maximum Speed: 6.2-9.3mph
- Max Climbing Angle: 8º (15%) 15Kph, 11º (20%) 12Kph
- Turning Radius: 56 Inches
- Seating Width: 20 Inches
- Tire Type: Pneumatic (1.7bar)
- Tire Size: Front (3-10) Inches
- Tire Size: Rear (3.50-10) Inches
- Battery Type x2: 12V 105Ah, Maximum
- Rear Wheel Drive Power Unit: 24V DC motor
- Controller Type: SD 140A
- Charger Capcity: 8Amp
Warranty
Provided that the scooter is unpacked within 1 month from date of Delivery, Afikim Electric Vehicles hereby warrants, guarantees and undertakes responsibility to replace free of charge defected part items material, according to the policy hereby mentioned.
Two-Year Full Warranty – Included Labor
For two (2) years from the date of delivery to the original purchaser, Afikim Electric Vehicles will replace free of charge, any of the following parts found upon examination by an authorized representative of Afikim Electric Vehicles to be defective in material and/or workmanship:
- Main frame
- Seat Post
- Tiller Frame
- Bearings, Bushings
- Harnesses
- Power units
- Controllers
- Chargers
- Electronic items – Front board, Display Board, Front light, Rear lights, Blinkers, USB charger etc.
- Off The Shelf items – Switches, key switch, brakes, fuses, Gas piston, Shock absorbers, Potentiometer, Speed Sensors, Fork etc.
Warranty Exclusions
The warranty shall not apply to serial numbered products if the serial number has been removed or defaced. Products subjected to negligence, accident, improper operation, maintenance or storage. Products modified without Afikim Electric Vehicles express written consent including, but not limited to, modification using unauthorized parts or attachments. Products damaged by reason of repairs made to any component without the specific consent of Afikim Electric Vehicles.
This warranty does not extend to those items which may require replacement due to normal wear and tear:
- ABS Plastic Shrouds
- Motor brushes
- Brake pads
- Tires and tubes
- Bulbs
- Batteries Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period, or worn out through heavy use is not covered.
- Circumstances beyond the control of Manufacturer
Scope of Warranty
The term 'replace free of charge' refers to the following Scope that will be performed and borne in full by Afikim Electric Vehicles: Shipping, and other charges incurred for delivery of the part to the customer premises. Note: Afikim Electric Vehicles reserves the right to request the proof of purchase upon making a warranty claim.
