Description

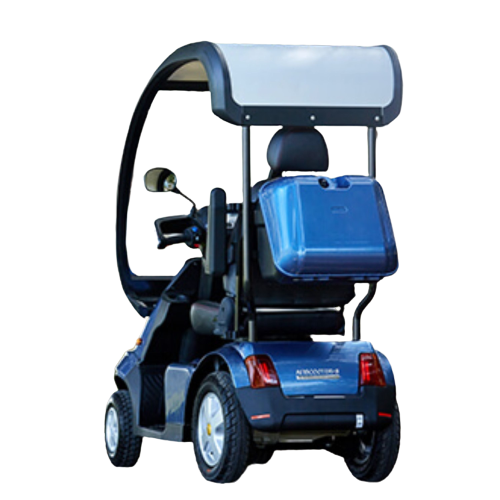

Afikim Afiscooter S4 Touring All-Terrain, 4 Wheel Electric Mobility Scooter, With Canopy seamlessly blends performance and luxury, offering a stable and smooth ride with its advanced four-wheel design. It features a high-quality suspension system that cushions against shocks, ensuring comfort on various terrains, from city streets to rugged paths. With a high-capacity battery, it provides an extended range for longer journeys, reducing the need for frequent recharges. The scooter's intuitive controls are user-friendly, while its sleek, modern design combines elegance with practicality.
FEATURES
- Four-Wheel Design: Offers enhanced stability and maneuverability for a smooth ride across diverse terrains.
- Advanced Suspension System: Provides superior shock absorption for a comfortable ride over various surfaces.
- High-Capacity Battery: Supports extended travel range, allowing for longer journeys between charges.
- Comprehensive Weather Protection: The Grand Touring (GT) Canopy offers full coverage, shielding the rider from harsh sunlight, rain, and wind, ensuring a comfortable ride in all weather conditions.
- Enhanced Visibility: Equipped with bright front and rear lights, turn signals, and reflectors for improved safety in different lighting conditions.
Specifications
- Brand: Afikim
- Color: Blue
- Overall Length: 65 Inches
- Overall Width - Standard Wheels: 27 Inches
- Overall Width - Golf Tires: 35 Inches
- Overall Height - No Canopy: 49 Inches
- Overall Height - with Canopy: 65 Inches
- Ground Clearance: 5 Inches
- Travel Range: 28 - 31 Miles
- Maximum Speed: 6.2 - 9.3 Mph
- Max Climbing Angle: 8 Degrees (15%) at 15Kph, 11 Degrees (20%) at 12Kph
- Turning Radius: 90 Inches
- Seating Width: 20 Inches
- Tire Type: Pneumatic (1.7bar)
- Front Tire Size: 4.10/3.50 - 6 Inches
- Rear Tire Size: 3.50 - 10 Inches
- Battery Type x2: 12V 105Ah, Max.
- Rear Wheel Drive Power Unit: 24V DC motor/1,400W
- Controller Type: SD 140A
- Charger Type: 8Amp
- Weight with Batteries: 342 Lbs
- Weight No Batteries: 238 Lbs
- Canopy Weight: 33 Lbs
- Wide Wheels Weight: 26 Lbs
- Weight Capacity Including Driver: 450 Lbs
Warranty
Provided that the scooter is unpacked within 1 month from date of Delivery, Afikim Electric Vehicles hereby warrants, guarantees and undertakes responsibility to replace free of charge defected part items material, according to the policy hereby mentioned.
Two-Year Full Warranty – Included Labor
For two (2) years from the date of delivery to the original purchaser, Afikim Electric Vehicles will replace free of charge, any of the following parts found upon examination by an authorized representative of Afikim Electric Vehicles to be defective in material and/or workmanship:
- Main frame
- Seat Post
- Tiller Frame
- Bearings, Bushings
- Harnesses
- Power units
- Controllers
- Chargers
- Electronic items – Front board, Display Board, Front light, Rear lights, Blinkers, USB charger etc.
- Off The Shelf items – Switches, key switch, brakes, fuses, Gas piston, Shock absorbers, Potentiometer, Speed Sensors, Fork etc.
Warranty Exclusions
The warranty shall not apply to serial numbered products if the serial number has been removed or defaced. Products subjected to negligence, accident, improper operation, maintenance or storage. Products modified without Afikim Electric Vehicles express written consent including, but not limited to, modification using unauthorized parts or attachments. Products damaged by reason of repairs made to any component without the specific consent of Afikim Electric Vehicles.
This warranty does not extend to those items which may require replacement due to normal wear and tear:
- ABS Plastic Shrouds
- Motor brushes
- Brake pads
- Tires and tubes
- Bulbs
- Batteries Note: Gradual deterioration in performance because the battery has been left in a discharged state, left in cold conditions for an extended period, or worn out through heavy use is not covered.
- Circumstances beyond the control of Manufacturer
Scope of Warranty
The term 'replace free of charge' refers to the following Scope that will be performed and borne in full by Afikim Electric Vehicles: Shipping, and other charges incurred for delivery of the part to the customer premises. Note: Afikim Electric Vehicles reserves the right to request the proof of purchase upon making a warranty claim.
