Description
- Medicare Code K0807
- Weight Capacity 350 lbs
- Drive Wheels Rear Maximum Speed 4.5 mph
- Operating Range 1 15 miles
- Ground Clearance to centre deck 4.5? Ground Clearance to transaxle/motor 2.5in Turning Radius 53.5? Type Batteries 2-U1 Colors
- Red Blue Freewheel Mode Yes
- Electronic Speed Control Yes
- Electro-Mechanical Brakes Yes
- Charger Off Board Controller 90 Amp
- Dynamic R Series Dimensions 3: Length 47.5 Width 24 Height (ground to top of the back of the seat) 36.5 - 39.5
- Ground to Top of Seat 23 - 26
- Ground to Top of Deck 6.25
- Deck to Top of Seat 17 - 20
- Number of Seat Height Positions 4

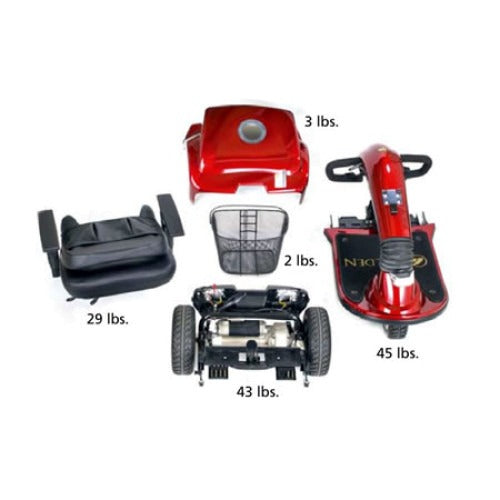

- Size of Increments 1 Front Axle to Rear Axle 35.5 Weight of Unit: (assembled) 186 lbs Front Half 63 lbs Rear Half 48 lbs Seat w/Arms 28 lbs Batteries 22 lbs ea
- Tires: Solid/Low Profile Front 9 Rear 10 Rear Anti-Tippers 3 Standard Seat 3: Stadium Style Slide Seat Standard Back Height - no headrest 16 Width x Depth 18 X 16 Color Black Vinyl Optional Seats 3: Stadium Style Back Height - no headrest 17.5 Width 16 18 or 20 Depth 16 or 18 Color Charcoal Vinyl Nubuck Vinyl Optional Seats 2 3: Captain's Highback Back Height - no headrest 21 Back Height with headrest 29 Width 18? Depth 18? Color Coffee/Sand Charcoal/Gray
- Seat Options: Pneumatic Rise Seat Option Yes Electric Rise Seat Option Yes
- Warranty: Frame Lifetime Drive Train 2 Years
