Description

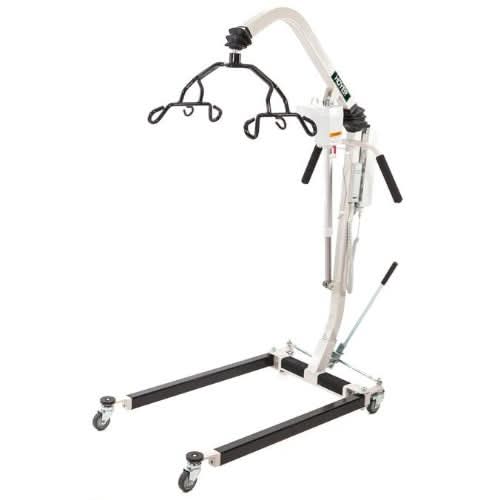

The Hoyer Deluxe Power Patient Lift with Six-Point Cradle is engineered for both caregiver comfort and patient security. Ergonomic handle grips reduce strain during positioning, while a mechanical down-release lever ensures smooth, non-powered lowering. The reverse-mounted single-speed electric actuator provides extra leg clearance and integrated leg guards, plus caster bumpers protect walls and furniture. Its adjustable U-base widens from 24 to 40.5 Inches to fit around diverse chairs and beds, and 3-inch non-locking casters allow effortless movement. The six-point cradle evenly distributes patient weight up to 400 lbs for balanced lifting. This durable, corrosion-proof lift streamlines transfers and enhances safety in home or clinical settings. Shop the Hoyer Deluxe Power Patient Lift today to elevate care standards and minimize injury risk!
FEATURES
- Ergonomic Grips: Comfort-molded handles reduce caregiver fatigue and improve control.
- Mechanical Down-Release: Lever-activated lowering for precise, non-powered descent.
- Reverse-Mounted Actuator: Single-speed electric lift motor maximizes leg clearance during use.
- Six-Point Cradle: Balanced sling attachment distributes weight evenly for secure lifting.
- Protective Guards: Leg shields and caster bumpers safeguard walls, furniture, and equipment.
- Heavy-Duty Casters: The 3-inch non-locking wheels for smooth transport on hard or carpeted floors.
- Boom Range: Adjustable from 28 - 77 Inches for seated to overhead transfers.
FAQs
-
Are the casters lockable?
This model comes with 3-inch non-locking casters; always secure the lift manually or with assistance during transfer. -
How do I adjust the base width?
Press the release handles on each leg and slide until they click at the desired width. -
Can I use it outdoors?
Designed for indoor use, avoid wet or uneven surfaces outdoors.
Specifications
- Brand: Hoyer
- Width: 24 - 40.5 Inches
- Length: 43.5 Inches
- Lift Range of Boom: 28 - 77 Inches
- Base Clearance: 5 Inches
- Caster Size: 3 Inches
- Cradle Points: 6
- Caster Type: Non-locking
- Weight Capacity: 400 Lbs
- Quantity: 1
Additional Info
BENEFITS
- Ergonomic Design: Reduces caregiver strain with comfortable handle grips for improved handling and control.
- Enhanced Safety: Six-point cradle and reverse-mounted actuator increase patient comfort and leg clearance.
- Flexible Width Adjustment: U-base adjusts from 24 to 40.5 inches to accommodate various transfer scenarios.
- Space-Saving Mobility: Compact frame with caster bumpers minimizes damage to furniture and walls during navigation.
- High Weight Capacity: Supports up to 400 lbs, making it ideal for a wide range of patient care needs.
USAGE GUIDELINES
- Setup: Position the lift carefully near the patient and adjust the U-base width for maximum stability and easy access.
- Lifting: Attach the sling securely to the 6-point cradle, ensure proper alignment, then smoothly raise using the manual actuator mechanism.
- Lowering: Use the mechanical down-release lever for safe, controlled, and precise non-powered descent of the patient.
- Positioning: Carefully maneuver the patient using ergonomic handles and swivel caster wheels to the exact desired location safely.
CARE INSTRUCTIONS
- Cleaning: Wipe down the frame and components with a mild disinfectant after each use to maintain hygiene.
- Inspection: Regularly check the actuator, cradle, and casters for wear or damage to ensure safe operation.
- Lubrication: Periodically apply lubricant to moving parts as recommended by the manufacturer.
- Storage: Keep the lift indoors in a dry, temperature-controlled environment to prevent corrosion or damage.
