Lafayette Manual Muscle Test System for Quantifying Muscle Strength with LCD Display and Data Tracking

UPC: 714905025883
Free Shipping Over $50
Price:
Sale price$3,125.45 Regular price$4,063.09
Save 23%

Description

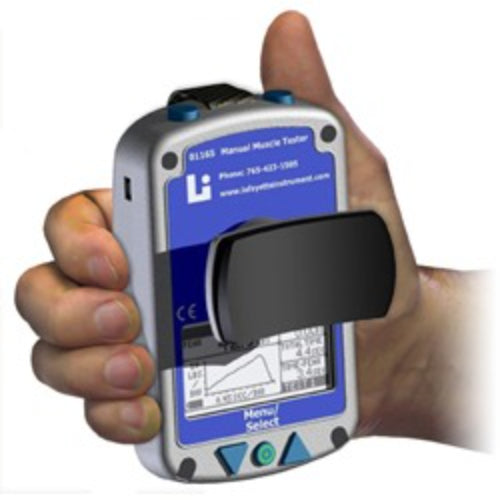

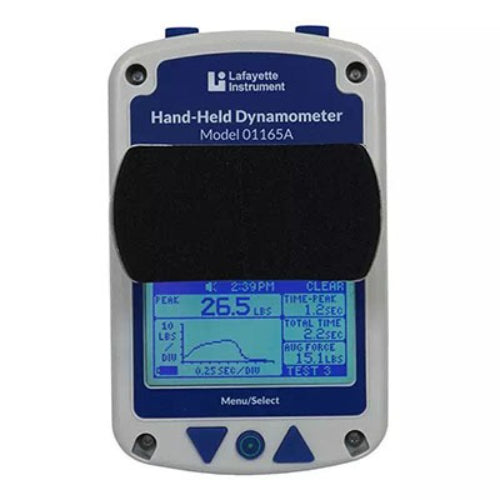

The Lafayette Manual Muscle Test (MMT) System is a handheld device designed to objectively quantify muscle strength using standardized testing methods. The system allows a clinician to apply force to a patient’s limb while measuring peak resistance force and time to break. These metrics ensure repeatable, dependable evaluations across sessions. MMT System features microprocessor control and customizable settings to meet various clinical requirements. Order the Lafayette Manual Muscle Test System today for reliable clinical strength assessment.

FEATURES

  • Quantitative Strength Measurement: Measures peak force, average force, and time values for accurate muscle strength assessment.
  • Graphical LCD Display: Clear visual feedback with indicators for test start, stop, and range entry improves testing accuracy.
  • Measurement Range 0–300 lbs: Captures a wide spectrum of muscle strengths with high resolution and ±1% accuracy.
  • Customizable Test Settings: Adjustable test time (0.5–10 seconds) and thresholds support varied clinical protocols.
  • 150-Test Data Storage: Onboard memory stores detailed test results for tracking and comparison over time.
  • Rechargeable Battery: Offers 6–8 hours of operation per charge with fast 45-minute recharge to 80% capacity.

FAQs

  • What is the measurement range of the MMT System?
    The system measures from 0 to 300 lbs (136.1 kg / 1335 N) with 0.1 lb/kg/N resolution for precise force detection.
  • How is the device calibrated?
    It features a 31-point calibration across the full measurement range, with points at every 10 lbs.
  • How much data can the device store?
    The system can store data from up to 150 tests directly in its internal memory.
  • What is the battery life?
    The battery supports 6-8 hours of operation and provides a 30-minute warning after a low battery condition is detected.
  • What is the charge time?
    The device reaches 80% charge in approximately 45 minutes and a full charge in 2 hours.

Specifications

  • Brand: Lafayette
  • Size: 3.1 x 5 x 1.5 Inches
  • Measurement Range: 0 - 300 lbs
  • Accuracy: +/- 1% over full scale
  • Preset Test Length: 0.5 - 10 seconds (0.1 second increments)
  • Battery: Rechargeable lithium-ion
  • Battery Life: 6-8 hours powered on
  • Charge Time: 80% in 45 minutes / Full in 2 hours
  • Data Storage: Up to 150 tests

Additional Info

BENEFITS

  • Standardized Testing: Ensures repeatable and accurate results by following established manual muscle testing protocols.
  • Time-Efficient Assessments: Fast test setup and automatic timers allow for streamlined clinical workflow and quick patient evaluations.
  • Detailed Data Insights: Captures peak force, time to peak, and time within ranges to provide in-depth analysis of muscle performance.
  • Clinical Reliability: Designed with microprocessor control and calibrated measurements for trustworthy diagnostic support.
  • Portable Solution: Compact design and onboard battery support mobility for fieldwork or use across multiple locations.

USAGE GUIDELINES

  • Setup: Power on the device and select the test duration and force thresholds through the interactive menu.
  • Patient Testing: Position the device against the limb; apply force to measure patient resistance until the break point is achieved.
  • Data Review: Review stored data directly on the graphical LCD screen for peak force and time metrics.

CARE INSTRUCTIONS

  • Cleaning: Wipe device surface with a soft, dry or slightly damp cloth; avoid harsh chemicals or immersion in liquid.
  • Battery Care: Recharge after each use and avoid prolonged storage with a depleted battery.
  • Storage: Keep in a dry, temperature-controlled environment to protect electronic components.
  • Inspection: Regularly check for physical damage or calibration issues before conducting tests.
