Description

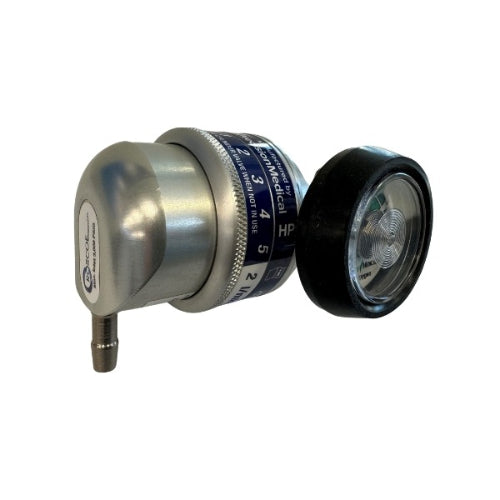

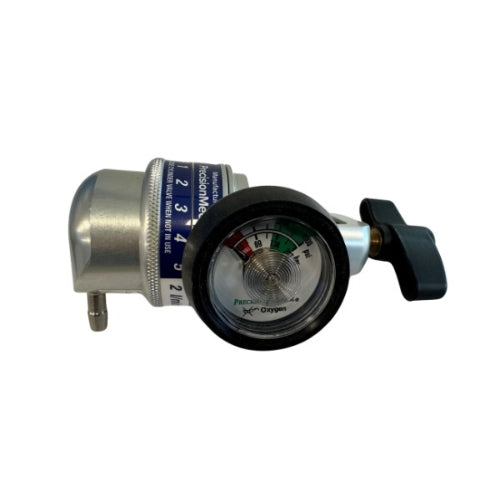

The Roscoe Medical EasyPulse 5 Oxygen Conserving Device is a compact and reliable oxygen delivery system designed for patients requiring oxygen therapy. Weighing less than 10 ounces, this ultra-lightweight oxygen-conserving device features a single-dial control and an ergonomically designed T-handle, making it easy for both patients and caregivers to operate. Equipped with 5 pulse dose settings and a 2 LPM continuous flow mode, it provides precise oxygen delivery tailored to the patient’s needs. Powered by patented Controlled Minute Volume (CMV) technology, the EasyPulse 5 delivers fast, sensitive, and consistent oxygen pulses without the need for batteries or electrical power. Built for durability and performance, it helps reduce cylinder deliveries and lowers operating costs. Shop the Roscoe EasyPulse 5 today for compact, dependable oxygen delivery, perfect for travel and daily respiratory support.
FEATURES
- Lightweight & Compact: It weighs just 9.86 oz (0.28 kg), ideal for portable oxygen therapy and on-the-go lifestyles.
- Single Dial Operation: Simple control for effortless setting changes, even by patients with limited dexterity.
- CMV Technology: Patented Controlled Minute Volume delivers consistent, accurate oxygen pulses with superior trigger sensitivity.
- Pulse & Continuous Flow Options: Offers 5 pulse dose settings and a 2 LPM continuous flow setting for versatile therapy.
- Battery-Free Design: Fully pneumatic operation reduces the need for charging, replacing batteries, or electrical access.
- Robust Build: Durable, reliable construction minimizes maintenance and withstands daily use.
- Ergonomic T-Handle: Designed for comfort and easy connection to CGA-870 cylinders.
FAQs
-
Is it compatible with all oxygen cylinders?
Yes, it’s designed for use with CGA-870 post valve cylinders, which are common for portable oxygen users. -
Does it require a specific cannula?
It works with a standard single-lumen cannula with up to 7 inches of tubing. -
Is it suitable for high altitudes?
Yes, the EasyPulse 5 can operate efficiently up to 10,000 feet above sea level.
Specifications
- Brand: Roscoe Medical
- Model: EasyPulse 5
- Dimensions: 4.8 (L) x 2.6 (W) x 2.5 (H) Inches
- Inlet Pressure Range: 300 - 3000 psig
- Regulated Internal Pressure: 50 psig
- Operating Altitude: Sea Level to 10,000 feet
- Pulse Flow Settings: 1, 2, 3, 4, and 5
- Continuous Flow Setting: 2 LPM
- Oxygen Saving Ratio: Up to 5.7:1
- Cylinder Connection Type: CGA-870
- Cannula Type: Single-lumen (up to 7 inches)
- Weight: 9.86 oz (0.28 kg)
Additional Info
BENEFITS
- Maximized Oxygen Efficiency: The up to 5.7:1 savings ratio helps extend the life of oxygen tanks, reducing refills and deliveries.
- Reliable Pneumatic System: No batteries or electronics mean fewer malfunctions and less maintenance.
- Adaptable Flow Modes: Choose between 5 pulse settings or switch to continuous flow for patients requiring steady oxygen delivery.
- Patient-Friendly Design: Lightweight and ergonomic, offering a comfortable and intuitive user experience.
- Lower Operational Costs: Reduces oxygen usage and eliminates the need for frequent tank replacements.
USAGE GUIDELINES

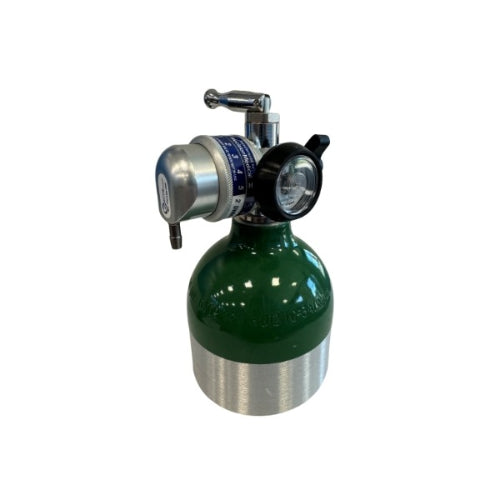

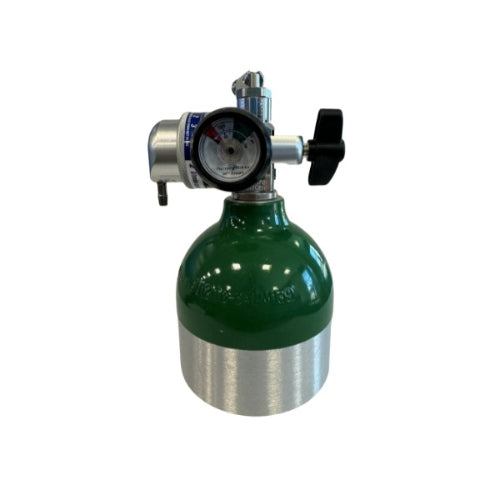

- Step 1: Attach the EasyPulse 5 to your oxygen cylinder using the CGA-870 connection and tighten with the ergonomic T-handle.
- Step 2: Connect a single-lumen nasal cannula to the device output fitting.
- Step 3: Select the desired pulse setting (1–5) or switch to the 2 LPM continuous mode using the single dial control.
- Step 4: Begin therapy. The device will deliver oxygen automatically with each breath.
- Step 5: Turn off the oxygen flow and remove the device when therapy is complete or when replacing the cylinder.
CARE INSTRUCTIONS
- Wipe Down Regularly: Clean the exterior with a soft cloth and mild detergent. Avoid submerging in water.
- Inspect Before Use: Check fittings and cannula connections before each session to ensure proper oxygen delivery.
- Store Properly: When not in use, keep in a clean, dry place away from dust and moisture.
- Check Cylinder Pressure: Ensure cylinder has sufficient oxygen before attaching the device.
Warranty
- Warranty: 2 Years
